Waterproof IP67 equipment hard plastic case China

Waterproof IP67 equipment hard plastic case

Products Mode: K-ABS033

Material: Food grade PP+5cm PU foam+PE outer

Outer Size: 613*460*320mm

Inner Size: 570*393*291mm

Colors: Grey，Blue, Customized

Usage: Wine+food+cans

Cold time: More than 72 Hours

G.W/N.W: 8.8kg

Outer Size:613*460*320mm

Description

Port: Ningbo

Min. Order: 200pcs

Delivery: 20-30 Days

Supply Ability: 20000pcs/per month

Payment: TT, L/C

Packing: Opp bag + carton box for each

Features :

1.The body of case is made of anti-impact engineering plastic injestion molding.
2.Water rubberstrip is made of foam silicon rubber.
3. Operating temperature:-40°C to 80°C.
4.Protection Class: IP67
5.Shock Resistance: IK08
6.Strong dustproof,better airtight,waterproof, Anti-corrosion performance,even in the adverse enviroment also can effectively protect the equipment.
7.Filled with pre-cut foam and easy to customize compartment for your equipment.
8.Case bottom and top cover have LOGO region.
9.Seal lock is a single injection,which can not fall off even suffer impact.

Specification :

Model Name	K-ABS033
Material	ABS
Process	Injection molding
Inner Size	570393291mm
Outer Size	613460320mm
Waterproof Level	IP67
Weight(empty)	8.8kg
Shock Resistence	IK08
Foams	Egg foam and cut foam, Customized foams acceptable
Wheels and Pull rod	No
Colors	Black/Yellow, or Customized
Range Temperture(°C)	-25°C-90°C
Warranty	Life-time warranty
Properties	Waterproof, shock-proof, crush-proof, anti-explosion and anti-corrosion, etc.
Certificates and tests	IP67,REACH, ROHS,PAHS

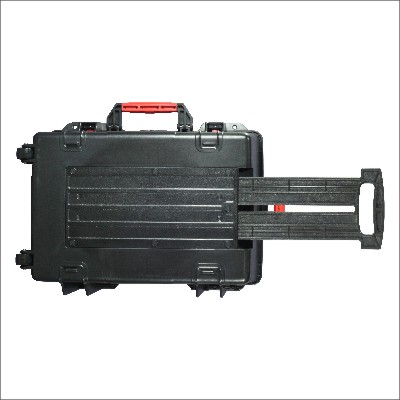

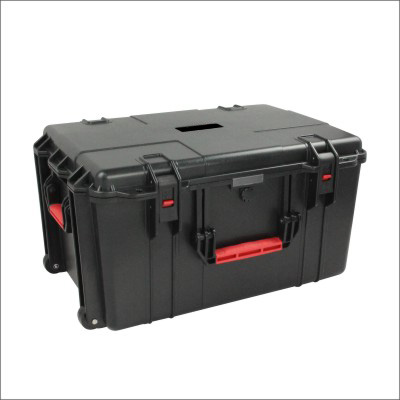

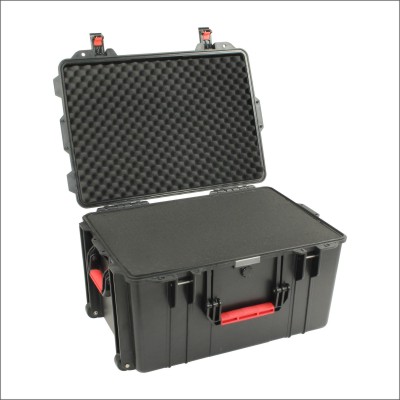

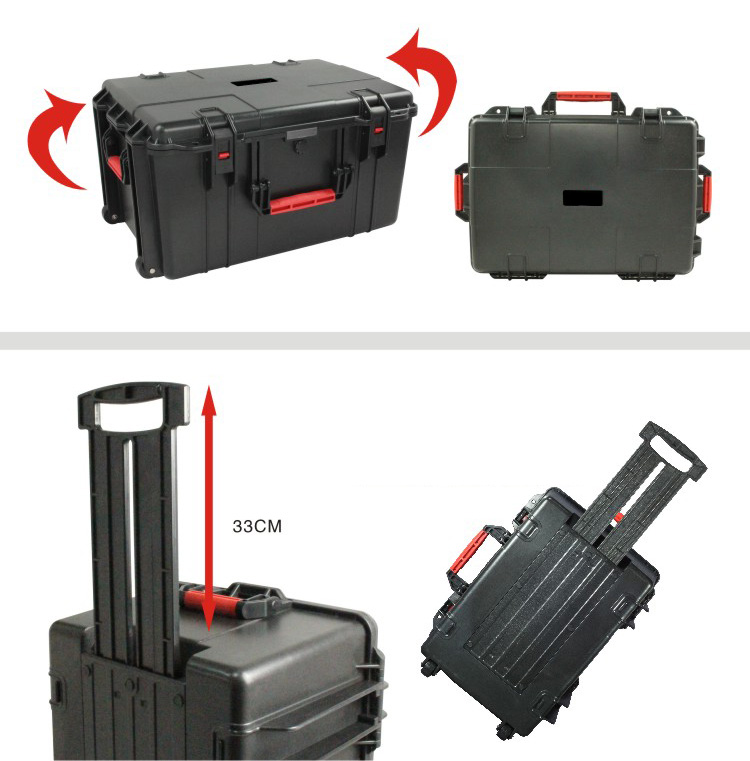

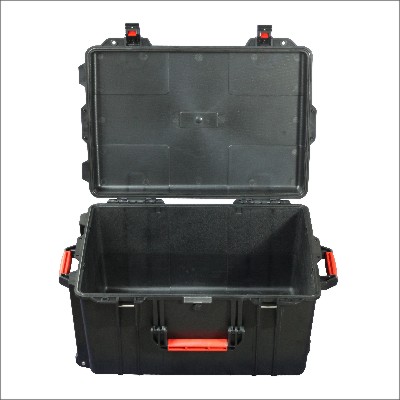

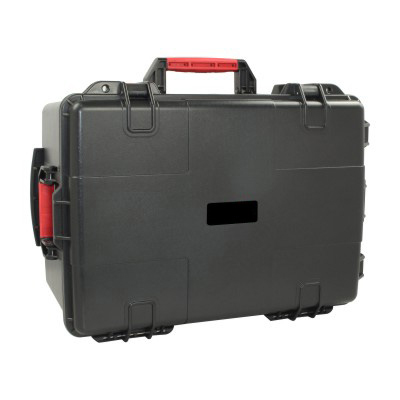

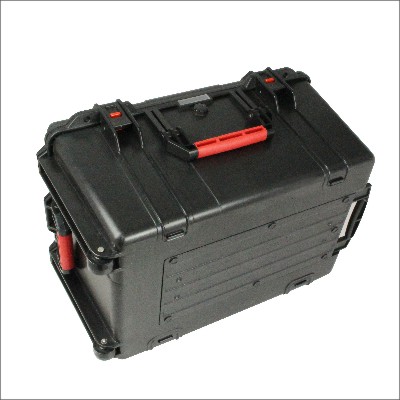

Products Images :

Trade Service :

Minimum Order	1. ABS black case MOQ is 50, other color can be customized, MOQ 500 pcs
	2. PP case stocks see as size list, MOQ is 50, other color can be customized, MOQ 500 pcs
	3. The foam is pre-cut and egg foam, custom foam is accept, MOQ is 50
	4. The packing is polybag and carton, custom packing is accept, MOQ is 50
OEM & ODM	1. Your design is welcome,the mould fee can be offset when future order reaches a certain amount.
OEM & ODM	2. All the products are designed under the regulations of certain protections, but we don't provide the certificates.
Payment Term	1. Tooling: 100% prepaid by wire transfer
Payment Term	2. Parts: 30% upon order confirmation and balance should be paid before delivery;
Payment method	TT, Paypal, Western Union, etc
Shipping Term	EXW, FOB, C&F or others can be discussed.
Leadtime	Stocks about 7-15 days, custom case about 30-45 days after payment
Guarantee	All equipment cases are strictly examined for absolute anti-water and unchageable case shape, we continue to guaratee the case for Life-time warranty for the accessories, like replacing O-ring or Purge Valve, latches and handles.

ABS Series Protective Case:
